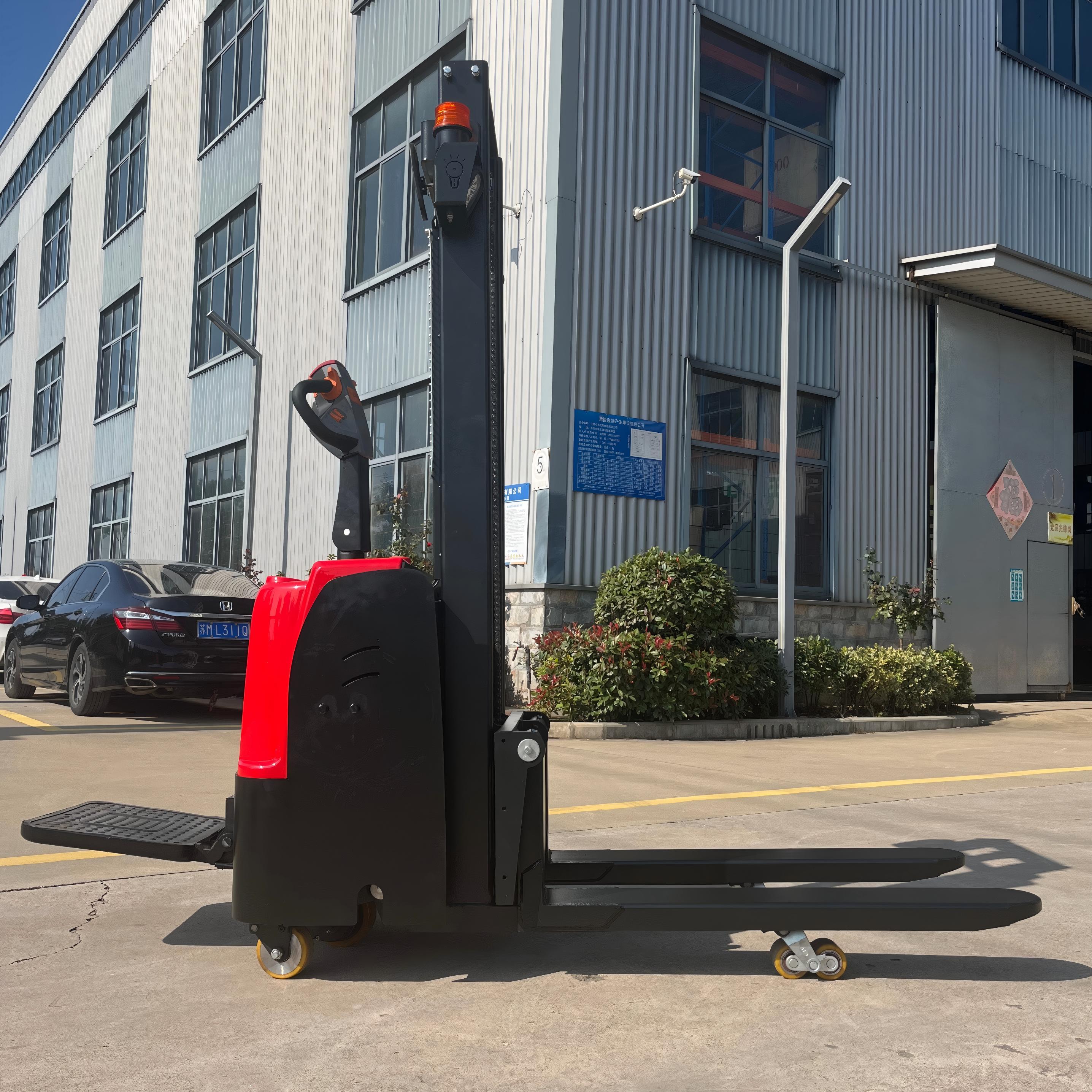

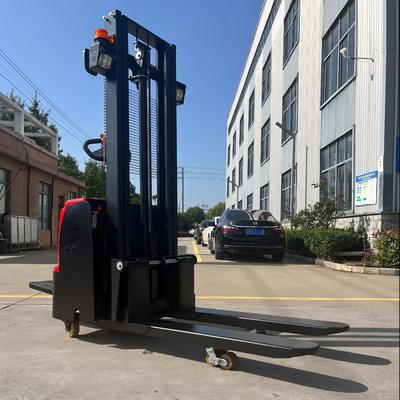

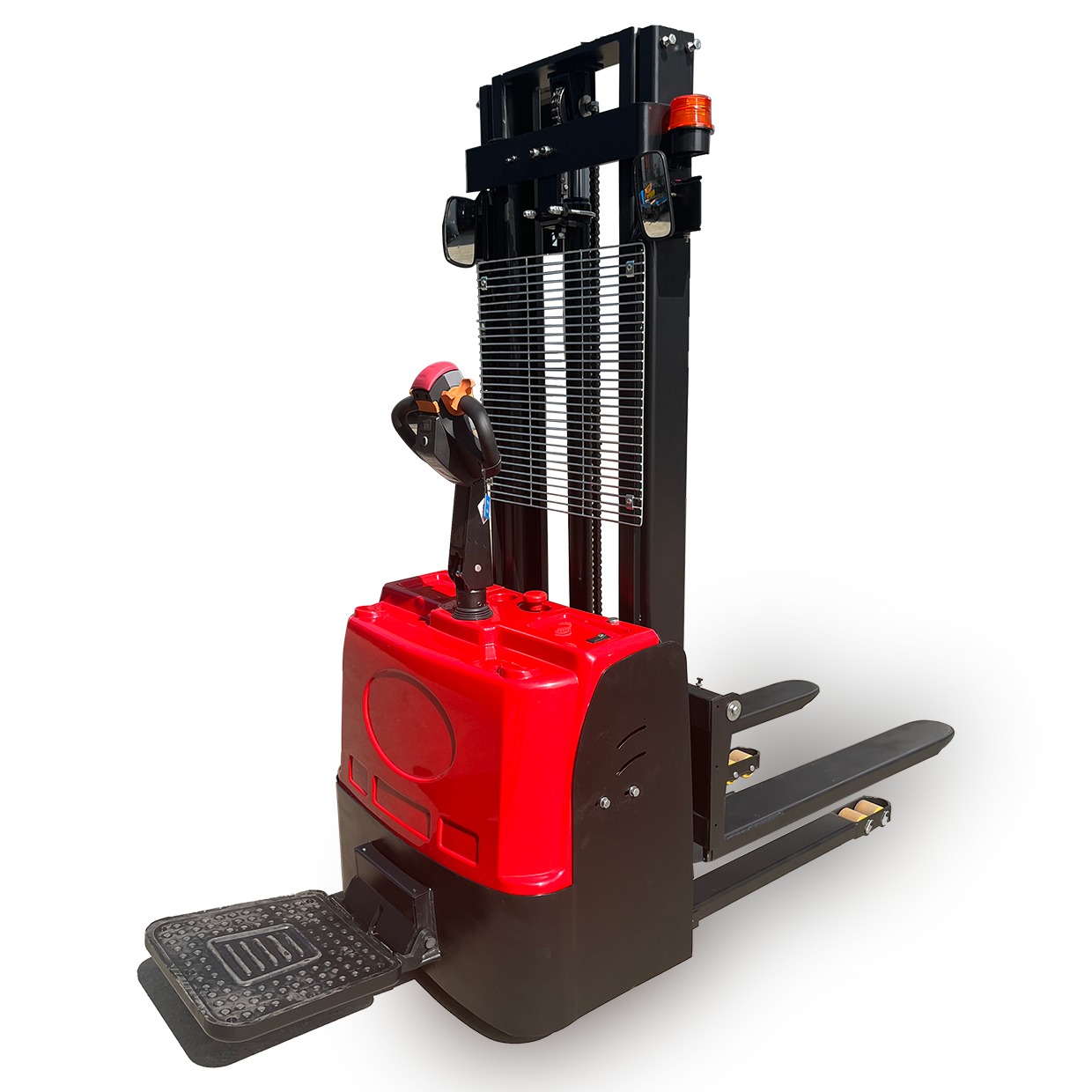

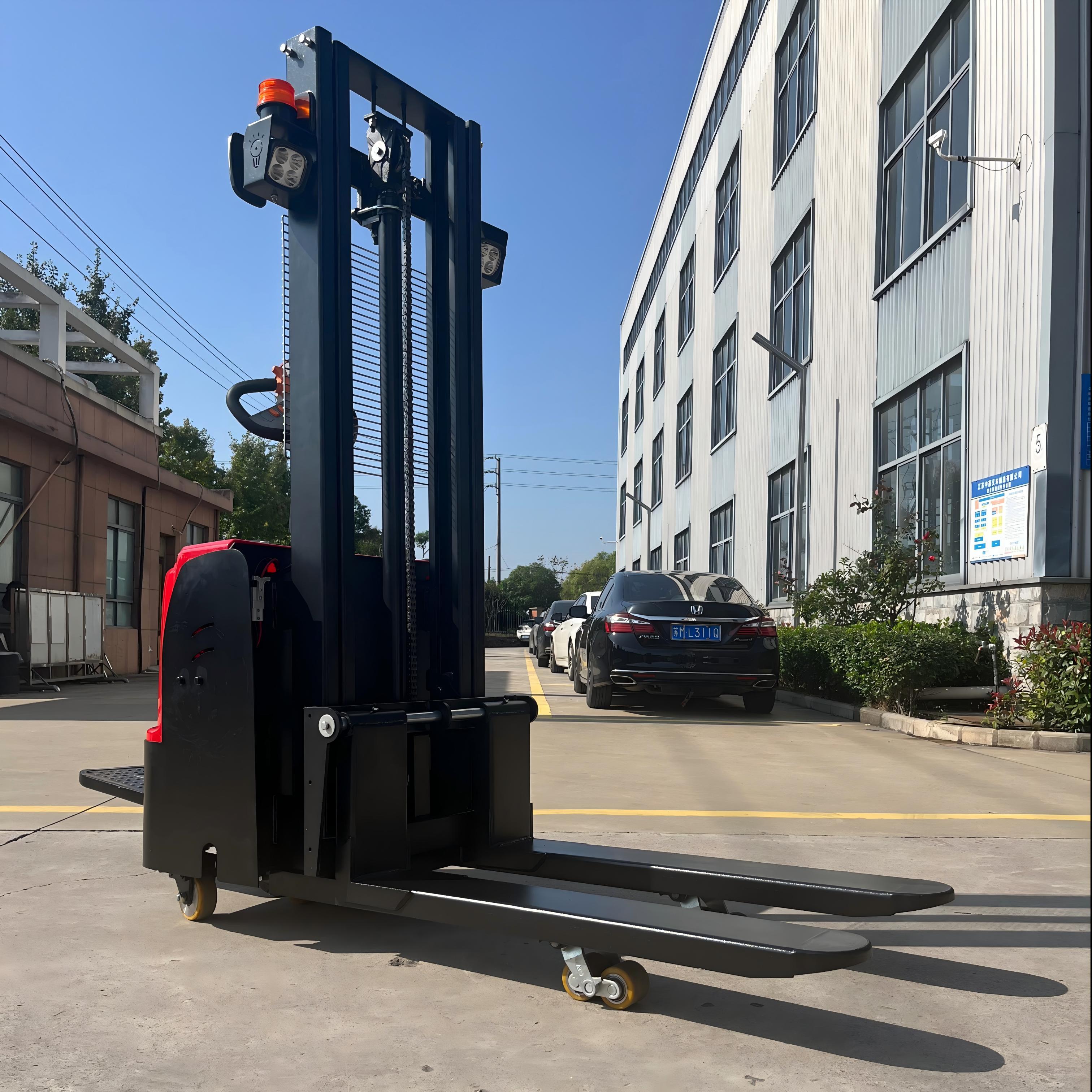

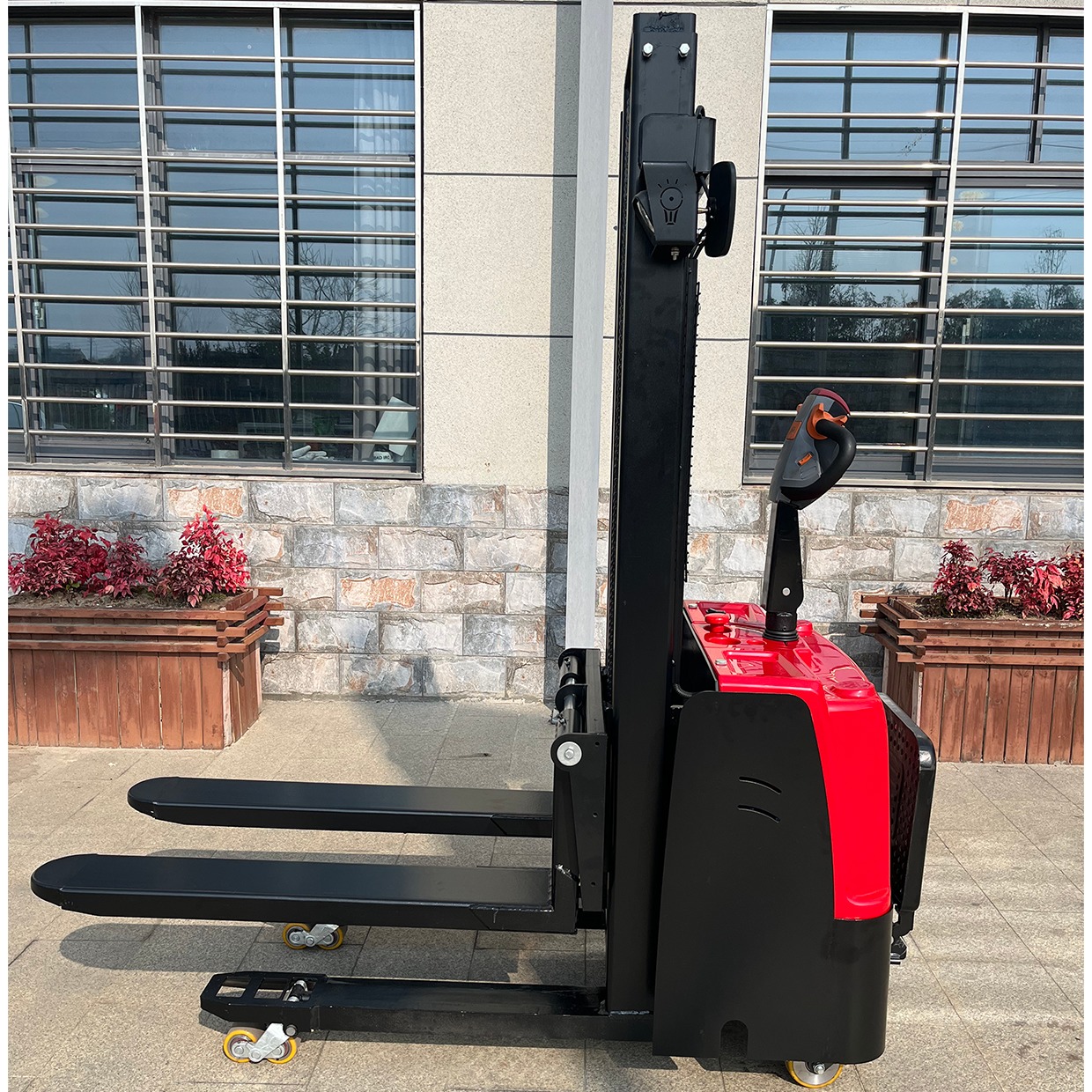

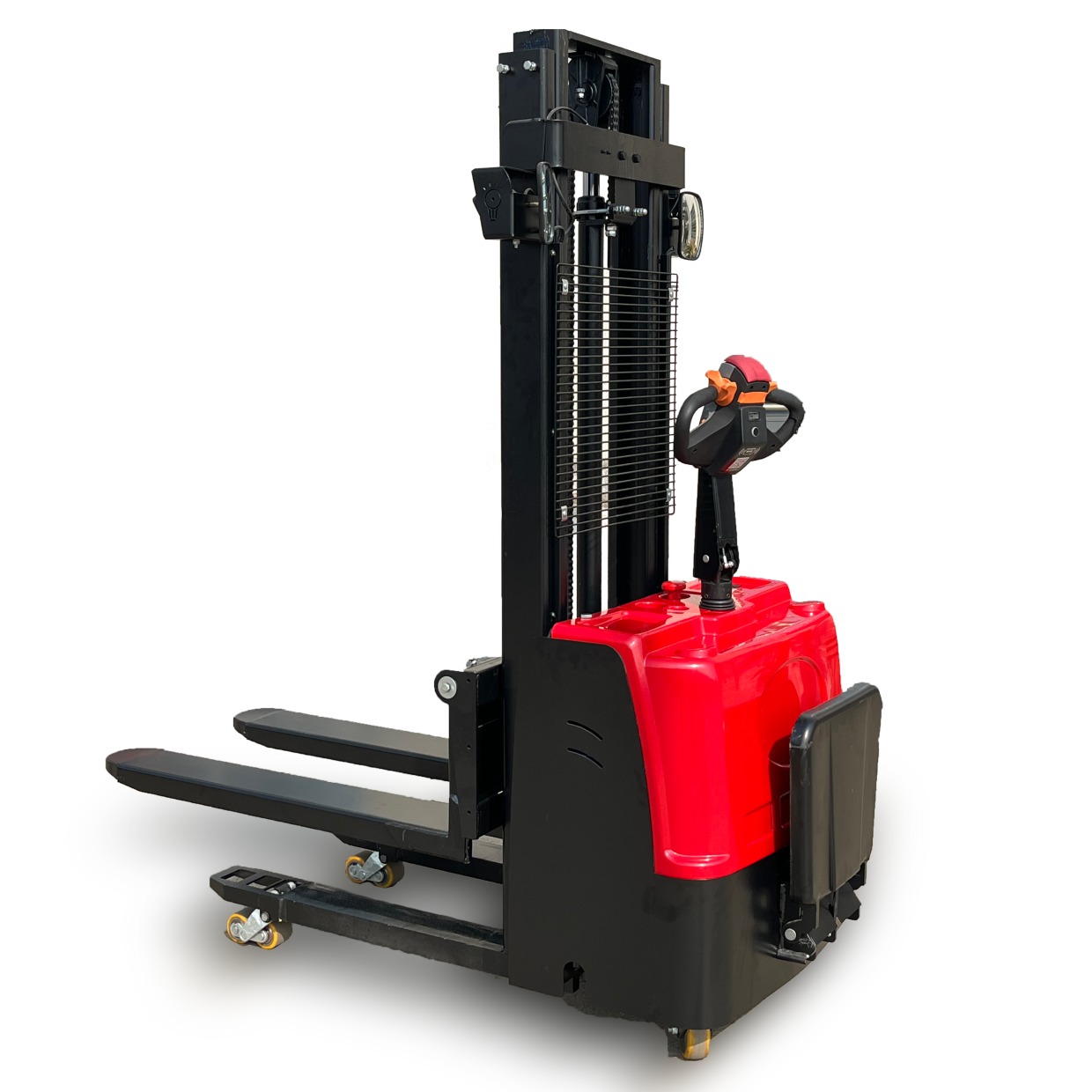

1.5 Ton Electric Pallet Stacker with 3M Lift for Warehouse

Βασικές πληροφορίες

Place of Origin:	Jiangsu, China
Μάρκα:	KAD

Minimum Order Quantity:	1
Τιμή:	$1,376.19

Καλύτερη τιμή Επικοινωνήστε

Fork Length:	1220mm	Fork Width:	125mm
Load Capacity:	1500kg	Lifting Height:	3000mm
Pedal Length:	410mm	Driving Motor:	0.75kw
Load Center:	500mm	Axle Centre:	700mm
Weight:	610kg	Driving Wheel Size:	Φ160*55mm
Load Wheel Size:	Φ80*70mm	Balance Wheel Size:	Φ125*50mm
Max Lifting Height:	2980mm	Overall Length:	2000mm
Overall Width:	855mm
Επισημαίνω:	1.5 ton electric pallet stacker , electric pallet stacker with 3m lift , warehouse electric pallet stacker

Self-Lift Electric Pallet Truck Stacker 1.5 Ton Electric Forklift

The fully electric double-mast stacker is a cutting-edge logistics solution engineered to optimize warehouse efficiency. Its innovative dual lifting mechanism enables synchronized raising of the forks and platform, dramatically enhancing loading and stacking speed. Powered by a robust electric motor, it delivers seamless, accurate control and a tight turning radius--perfect for navigating narrow aisles. With a high-performance lead-acid battery, it ensures extended runtime while maintaining energy-efficient, low-upkeep operation. Ideal for warehouses, distribution hubs, or industrial settings, this stacker is the ultimate tool for intelligent, high-speed material handling.

Product Specifications

Attribute	Value
Model	CDDA15
Applicable Industries	Building Material Shops
Condition	New
Load Capacity	1500kg
Lifting Height	3000mm
Power Source	DC MOTOR
Warranty	1 Year
Drive Type	Electric
Fork Length	1220mm
Fork Width	125mm

Technical Specifications

Driving Motor	0.75kw
Lifting Motor	2.2kw
Battery Capacity	48V/32Ah
Driving Speed (Empty/Full Load)	4.5/5.5 km/h
Lifting Speed (Empty/Full Load)	62/88 mm/s
Descending Speed (Empty/Full Load)	94/70 mm/s
Max Gradient (Empty/Full Load)	3°/5°
Noise Level	≤70 dB(A)

Key Features

All-Electric & Eco-Friendly: Zero emissions and low noise operation
Dual-Lift Efficiency: Synchronized fork and platform lifting for faster stacking
Compact Design: Tight turning radius for narrow aisle navigation
Enhanced Safety: Electromagnetic braking system and mechanical steering
User-Friendly: Ergonomic handle design reduces operator fatigue
Reliable Power: Lead-acid battery with stable performance

Machine Components

Control Handle

Domestic famous control handle (Brand: KAD) with functional buttons that can control UP/DOWN, FORWARD/BACKWARD movements sensitively.

Operation Panel

Combined with the key, battery indicator, and emergency switch. Functional panel with beautiful design for easy operation.

Lifting Mechanism

Strong cylinder and chain system for smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Frequently Asked Questions

What is your terms of packing?

Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

How about your delivery time?

Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
