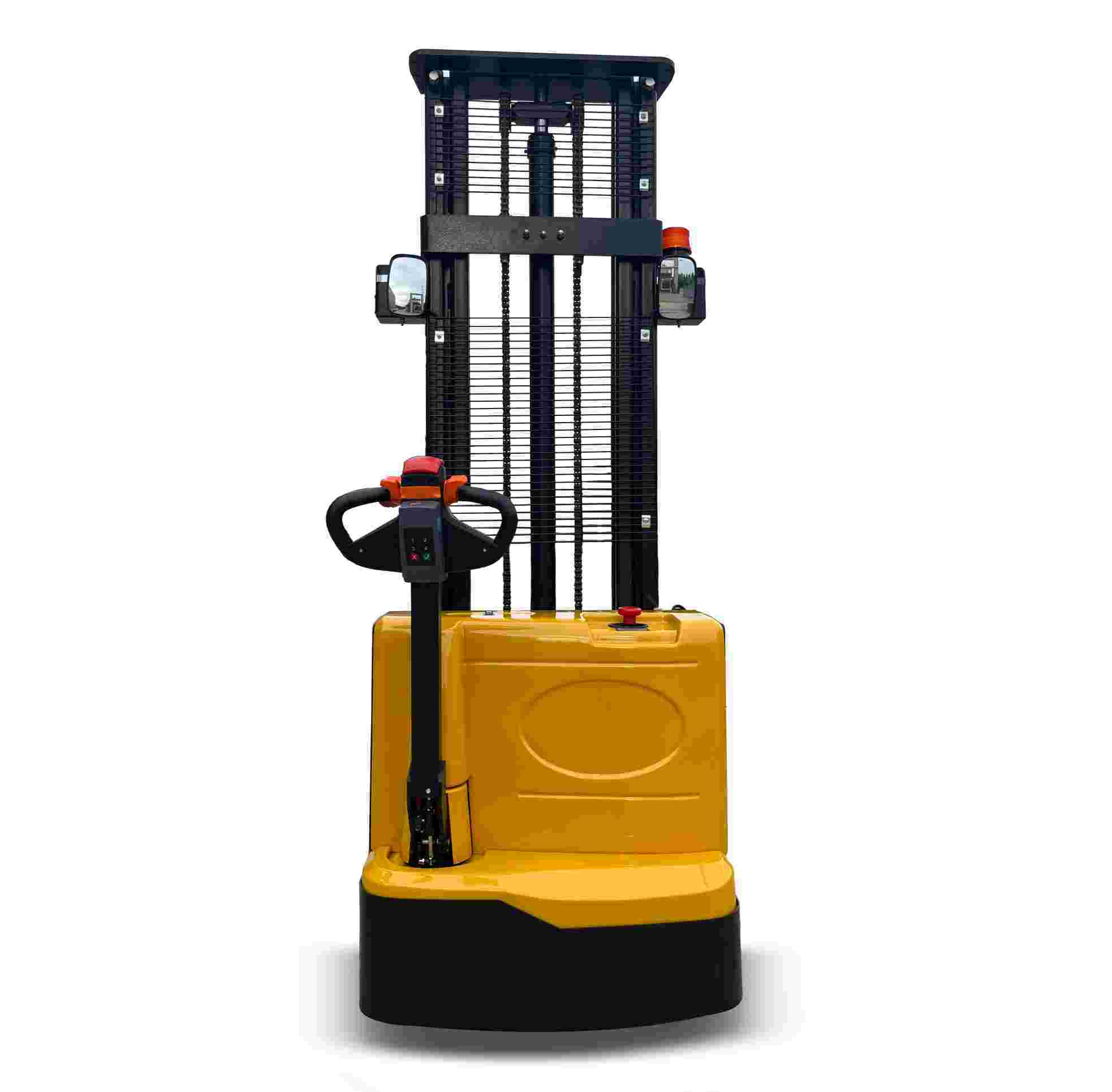

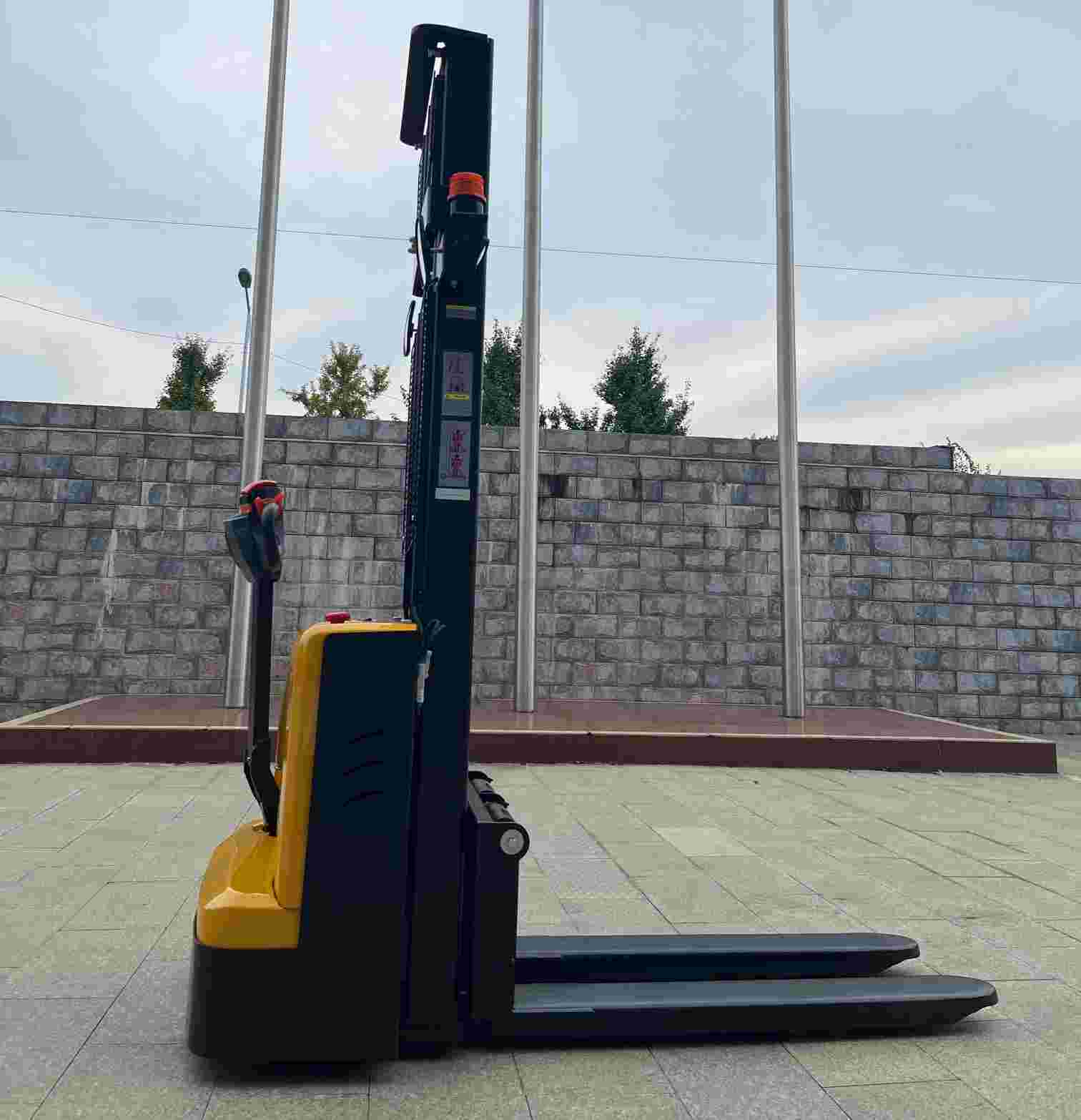

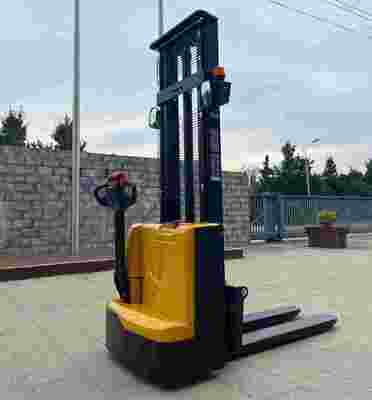

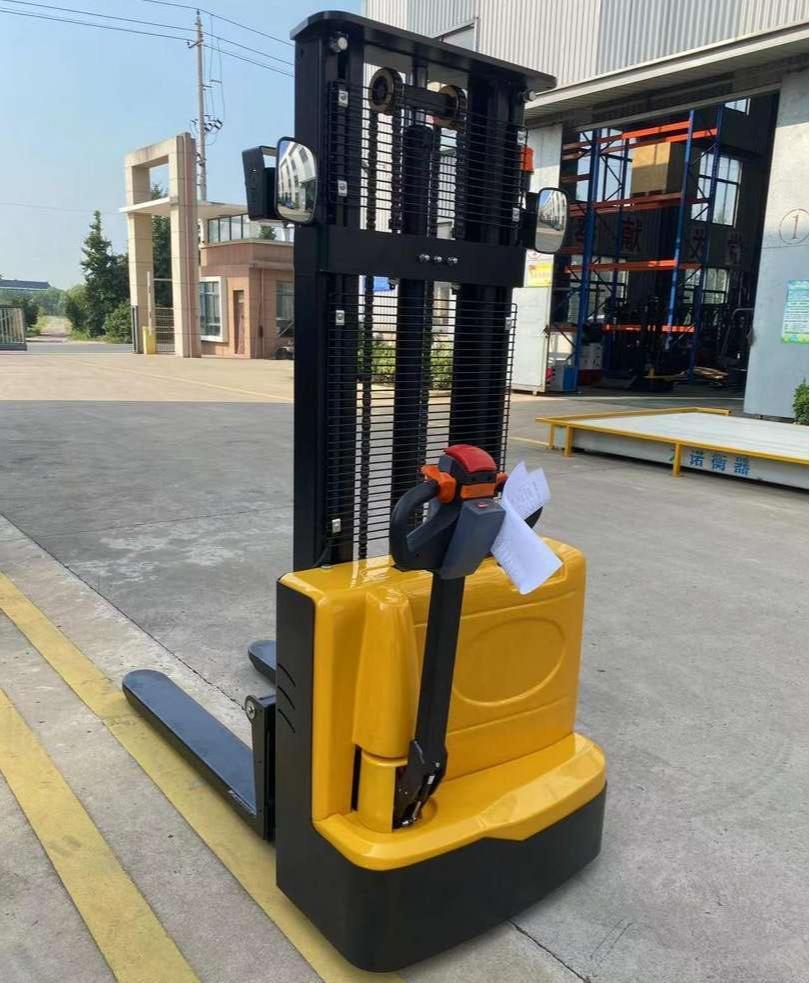

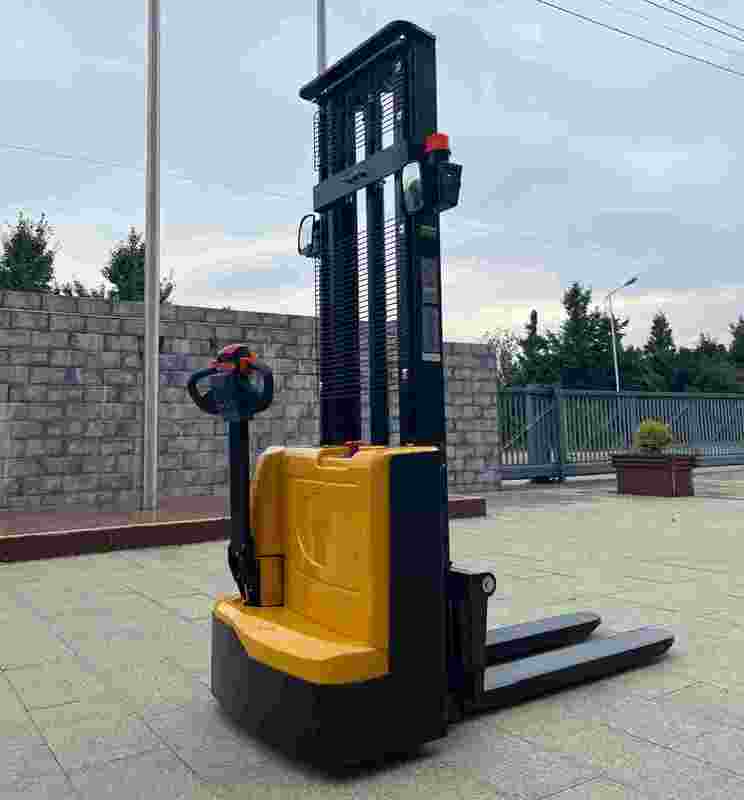

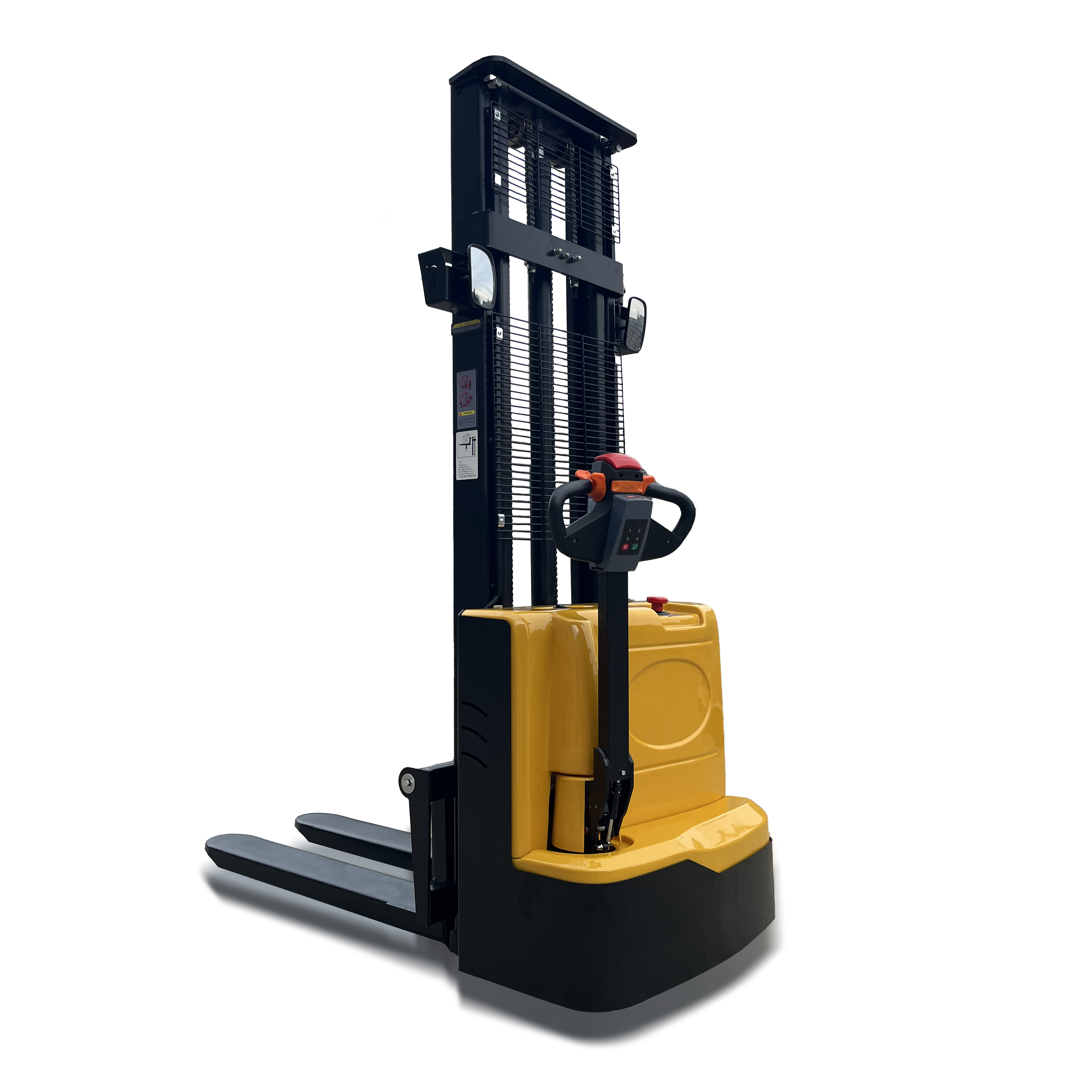

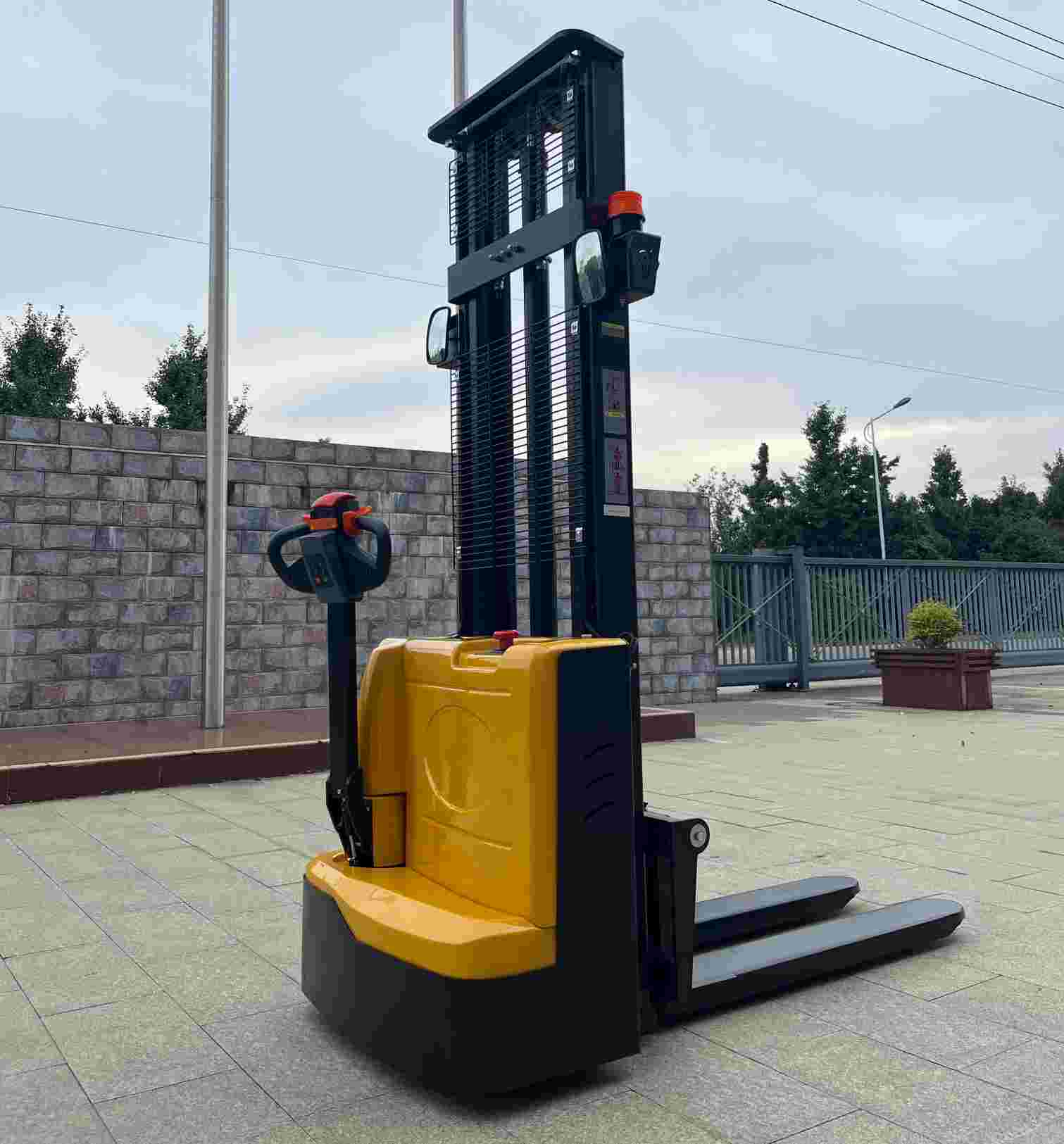

Electric Walkie Stacker 1.5 Ton 3.5m Lift Height CE Certified

Βασικές πληροφορίες

Τόπος καταγωγής:	Jiangsu, Κίνα, ΣΟ JIA
Μάρκα:	KAD
Πιστοποίηση:	CE/ISO9001

Ποσότητα παραγγελίας min:	1
Τιμή:	US$1,280-1,680

Καλύτερη τιμή Επικοινωνήστε

Διχαλωτό μήκος:	1070 mm	Πλάτος δικράνων:	550/680 χιλιοστά
Κέντρο φόρτωσης:	500mm	Βάρος με μπαταρία:	480/495/515/535 κιλά
Βάρος φορτίου:	1500 κιλά	Υψόμετρο φορτίου:	500mm
Χωρητικότητα μπαταρίας:	24/140Ah	Ύψος ανύψωσης:	1.6m-3.5m
Min Υψόμετρο ανύψωσης:	90mm	Συνολικές διαστάσεις:	2130 ((L) * 850 ((W) * 2080mm ((h)
οδηγώντας ταχύτητα:	5,0/5,0 MM/S	Ταχύτητα ανύψωσης:	140/135 MM/S
Μειωμένη ταχύτητα:	150/155 MM/S	Κινητήρας οδήγησης:	DC/0,75 kW
Ανυψωτικός κινητήρας:	Συνεχές ρεύμα/2,2 kW
Επισημαίνω:	Electric pallet stacker 1.5 ton , CE certified walkie stacker , Electric stacker 3.5m lift

Electric Walkie Stacker 1.5ton 3m 3.5m Europe US Standard Electric Pallet Stacker With CE

Product Specifications

Attribute	Value
Condition	New
Fork Length	1070mm
Fork Width	550/680mm
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability	Indoor Flooring, other
Color	Green/Red/Yellow/Customized
Tire	PU Wheel
Load Center	500mm
Weight (With battery)	480/495/515/535KG
Load weight	1500KG
Load height	500mm
Battery Capacity	24/140Ah
Lifting height	1.6m-3.5m
Power Source	DC MOTOR
Warranty	1 Year
Core Components	Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine
Min. Lifting Height	90mm
Overall Dimensions	2130(L)850(w)2080mm(h)
Weight (KG)	550 kg

Product Description

This electric walkie stacker is designed for easy operation, requiring only basic training to master, making it suitable for various workers. Its compact size and light weight allow flexible maneuvering in tight spaces, ideal for warehouse and factory use.

The stacker features robust safety components including emergency brakes, speed limiters, and anti-slip functions to ensure operator safety. The walking operation method provides operators with better vehicle control, significantly reducing accident risks.

Model	CDDW10 CDDW15
Drive system	Battery
Driving mode	Walkie
Load Capacity	Q	KG	1000
Load Center	C	MM	500
Weight (With battery)	KG		480/495/515/535
Wheel Material	PU
Lifting Height	H3	MM	1600/2000/2500/3000/4000
Lowest Mast	H1	MM	2080/1580/1830/2080/1580
Max.Height when operating	H4	MM	2080/2730/3230/3730/4750
Min.Height of Fork	H13	MM	≤90
Length	L1	MM	1770
Width	B1	MM	850
Fork Length	L	MM	1070
Wheelbase	Y	MM	1250
Fork Outside Width	B5	MM	680
Fork Inside Width		MM	305
Min.Turning Radius	WA	MM	1390
Driving Speed (Empty/Full Load)		MM/S	5.0/5.0
Lifting Speed (Empty/Full Load)		MM/S	140/135
Descending Speed (Empty/Full Load)		MM/S	150/155
Max.Gradient (Empty/Full Load)		°	7/5
Brake	Electromagnetic brake
Driving Motor		KW	DC/0.75
Lifting Motor		KW	DC/2.2
Battery Capacity		V/Ah	24/80/100;Li/gel

Key Features

Curtis controller - Serviced by any forklift service company worldwide
Integrated charger - Provides flexibility for modern supply chain needs
Maintenance-free batteries - No water addition required
High strength forks - Durable construction for heavy loads

Main Components

Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control. Features Curtis brand accelerator for safe operation.

Safety Features

Night operation lights - Enhances visibility in low-light warehouse environments
Reverse rearview mirror and buzzing sound - Added safety devices not found on competitive models
Durable mast - 3-stage high-strength mast supports heavy loads at 4-4.5m heights
