Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm

Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm
Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm
Βασικές πληροφορίες
Ποσότητα παραγγελίας min: 1
Τιμή: 4403
Καλύτερη τιμή Επικοινωνήστε
Μοντέλο αριθ.: CDD1550 Χωρητικότητα φόρτωσης: 1-1,5 τόνους
Κέντρο φόρτωσης: 500mm Ύψος ανυψωτήρα: 5000 χιλιοστά
Υψόμετρο φορτίου: 5500mm Μικτό βάρος: 960.000 κιλά
Χωρητικότητα μπαταρίας: 24v/210Ah Πλάτος δικράνων: 550/680 χιλιοστά
Ακτίνα περιστροφής: 1738/2099 χιλιοστά Διχαλωτό μήκος: 1070 mm
Κινητήρας οδήγησης: 1,2 kW Ανυψωτικός κινητήρας: 2.2kW
Μέγεθος ελαστικών: 300/250mm Συνολικό μέγεθος: 2170*1570*2100 χιλ.
οδηγώντας ταχύτητα: 4km/h
Επισημαίνω:

Highest Height 5.5m Electric Pallet Stacker

,

Load Capacity 1-1.5t Electric Forklift Stacker

,

Load Center 500mm Platform Electric Stacker

Platform Electric Stacker Electric Forklift Stacker with Highest Height 5.5m
Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 0

The full electric stacker is designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-operability, it offers high safety performance. Ideal for operations in narrow passages and confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.

Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre Type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased Height per Tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max Height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm

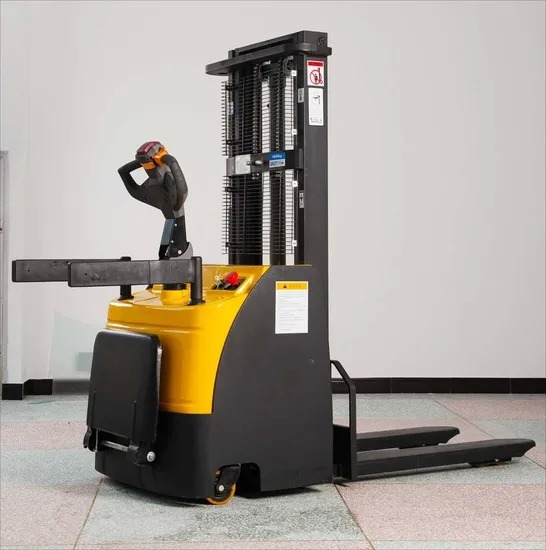

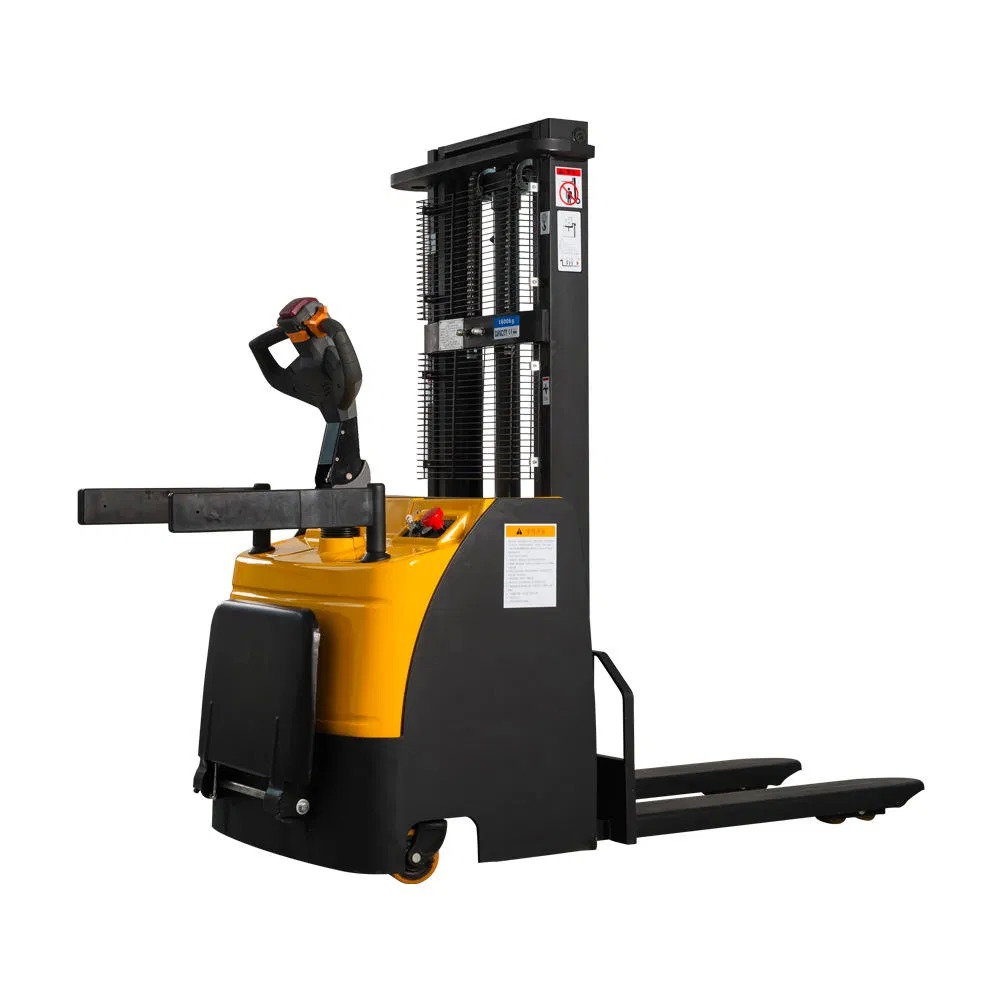

Product Gallery
Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 1
Key Components

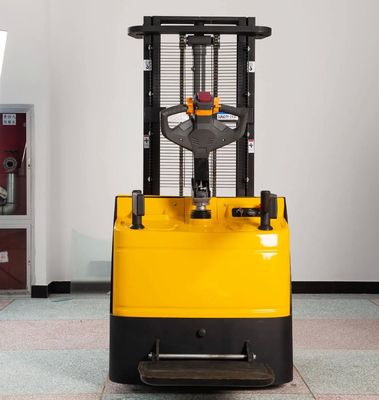

Control Handle

Brand: KAD - Domestic premium control handle featuring functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.

Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 2 Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 3

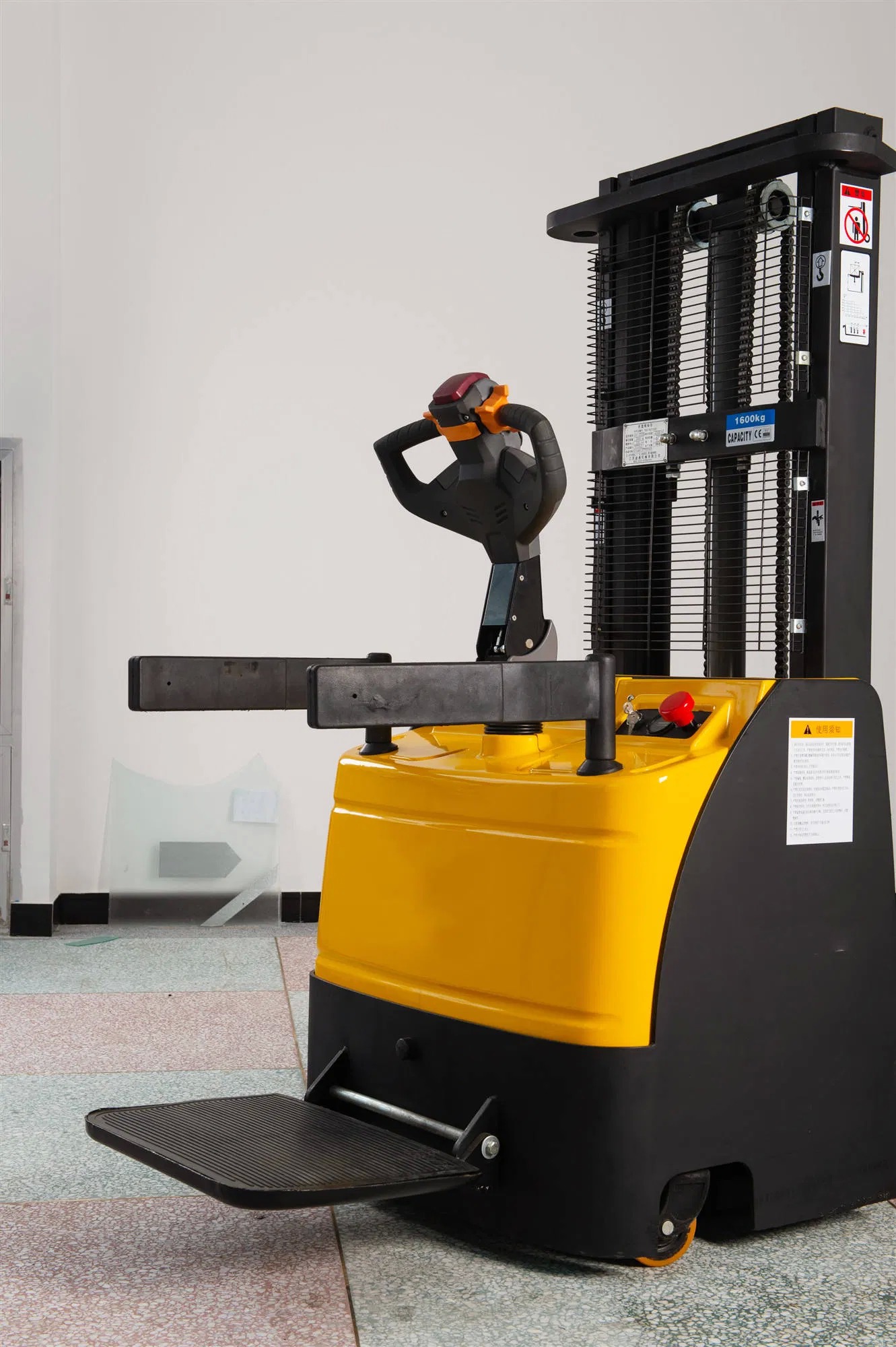

Operation Panel

Combined with key, battery indicator, and emergency switch. The functional panel features an ergonomic design for comfortable operation.

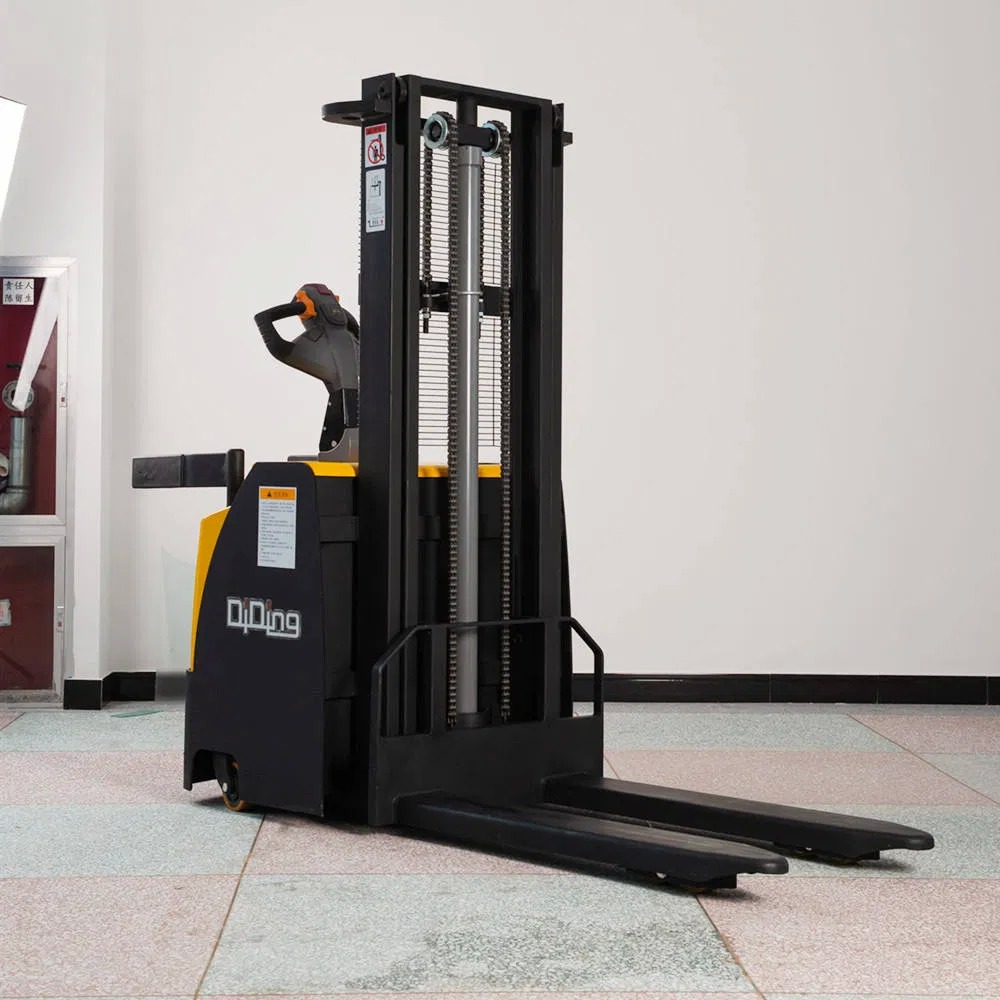

Mast System

Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 4 Electric Pallet Stacker with Highest Height 5.5m Load Capacity 1-1.5t and Load Center 500mm 5
Main Features
  • Side-positioned drive system with strong caster for enhanced stability
  • Compact design for operation in confined spaces
  • Stepless speed regulation for precise control
  • Polyurethane tires for durability and smooth operation
  • Ergonomic control handle with intuitive operation
Frequently Asked Questions
Q: What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q: What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q: How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
